| Project | Describe | |
| Output | Maximum output voltage | Three-phase 380V~440V, corresponding input voltage |
| Maximum output speed | 12000RPM | |
| Enter | Rated voltage, frequency | Three-phase: 380~440V 50/60Hz |
| Allowable voltage fluctuations | +10%, -15% | |
| Allowed frequency fluctuations | ±5% | |
| Control Characteristic | Control method | Sine wave PWM modulation, full closed-loop vector control |
| Speed range | 1:5000 | |
| Speed control accuracy | ±0.02% | |
| Position control accuracy | Earth 1Pulse | |
| Frequency setting resolution | Digital input: 0.01Hz; Analog input: Unipolar, maximum output frequency / 4096; Bipolar, maximum output frequency / 2048 | |
| Acceleration and deceleration time | 0~3600S to maximum output frequency | |
| Braking method | Energy-efficient braking, built-in braking unit for 93KW and below | |
| Enter Output interface | Digital input | Standard type: 7-channel optocoupler isolated input; Extended type: 12-channel optocoupler isolated input; Input method NPN, PNP optional |
| Digital output | Standard type: 2-channel optocoupler isolated output; Extended type: 4-channel optocoupler isolated output; Voltage range: 0~26V, maximum output current: 50mA | |
| Analog input | 3 channels: 0~10V, 0~20mA, -10V~+10V | |
| Analog output | 1 channel, 0/2~10V, 0/4~20mA selectable | |
| Relay output | 2-channel, two sets of normally open and normally closed contacts; 30VDC 1A | |
| Encoder input interface | 1-channel motor encoder: Standard 5V differential, up to 1MHz, compatible with 5VOC, up to 100KHz; Rotary transformers and sine/cosine encoders are optional. 1-channel spindle encoder (optional): 5V differential, up to 1MHz, compatible with 5VOC, up to 100KHz; | |
| Pulse input interface | Channel 1: Direction + Pulse / Quadrature Pulse / CW + CCW | |
| Encoder output interface | 1-channel: 1:1 or 1:2 frequency divider output, line-driven; RS422 standard. | |
| Bus interface | Standard type: 485 bus Extended types: CANopen, EtherCAT | |
| Spindle Function (ARM1 only) Have) | Speed control | Range: 0~12000RPM; Direction: Forward/Reverse; Speed Commands: Single/Bipolar Analog, Pulse Frequency, Bus |
| Pre-stop control | ±1 Pulse accuracy; 8 positions selectable via terminals. | |
| Rigid tapping | It can interface with a variety of imported and domestic systems, with a tapping error of 2%. | |
| Other functions | C-axis control, thread cutting, electronic gearing, reaming, zero-speed locking | |
| Protect Function | Overload protection | It has overload protection functions for the driver and motor. |
| Overcurrent protection | Hardware overcurrent protection | |
| Undervoltage/Overvoltage Protection | Overvoltage protection when the bus voltage exceeds 800V, and undervoltage protection when the voltage drops below 350V. | |
| Output short circuit protection | When the output is short-circuited, an alarm output is triggered. | |
| Enable Environment | Location of use | Indoors, no corrosive gases |
| temperature | -10℃~40℃ | |
| humidity | 5~95RH (non-condensing) | |
| Protection level | IP20 | |
| Overload | Current overload | 150% of rated current for 1 minute |
Application

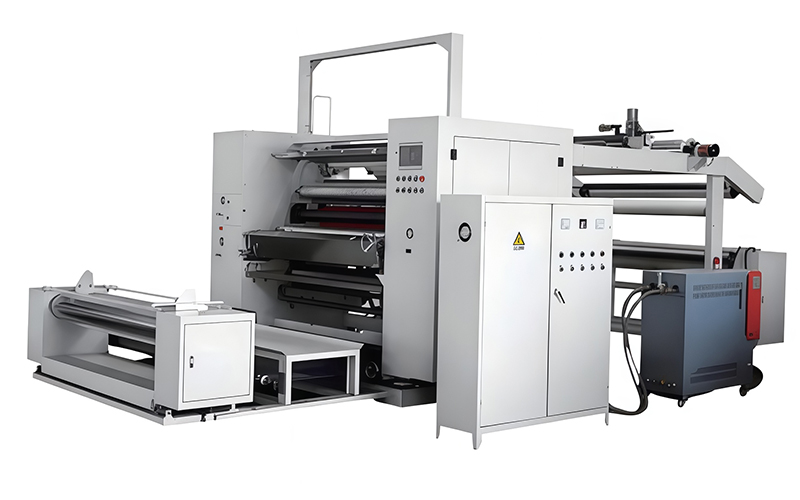

Coating Machine
1) Power range: 5.5kW-22kW
2) Rated speed range: 1500rpm-2000rpm
3) Low speed capability: 0.1Hz 4 times overclocking

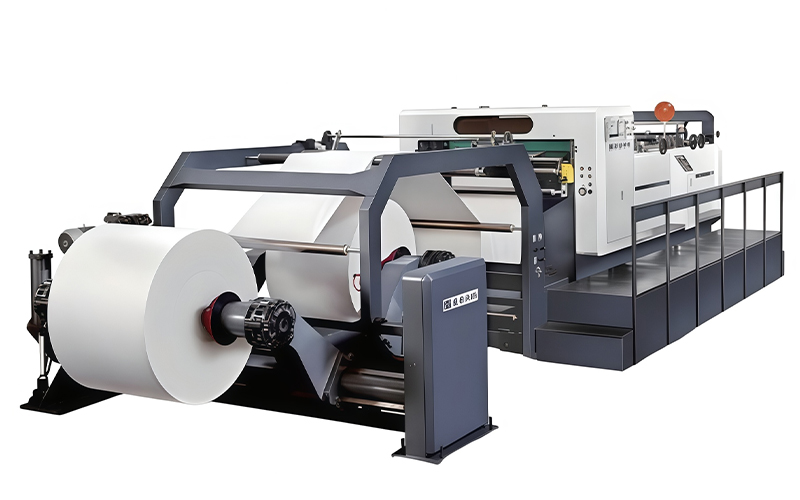

Tissue Paper Machinery
1) Power range: 5.5kW-22kW
2) Rated speed range: 1000rpm-2000rpm
3) Low speed capability: 0.1Hz

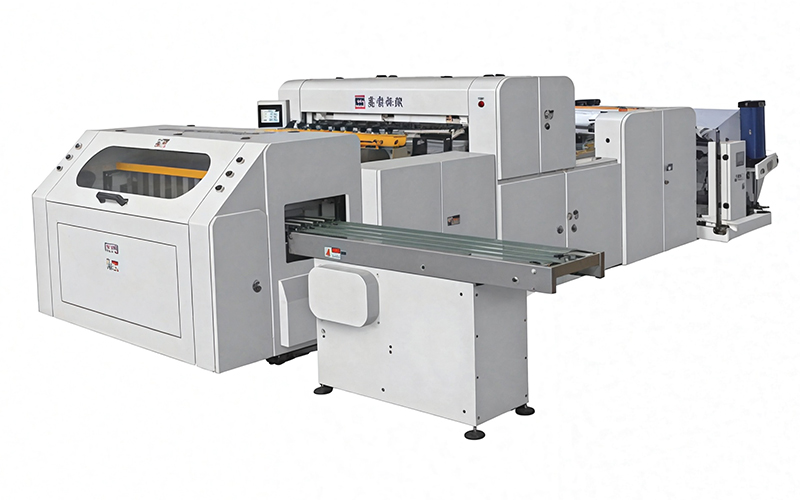

Corrugated Paper Machinery
1) Power range: 2.2kW-110kW
2) Rated speed range: 1500rpm-2000rpm
3) Low speed capability: 0.1Hz

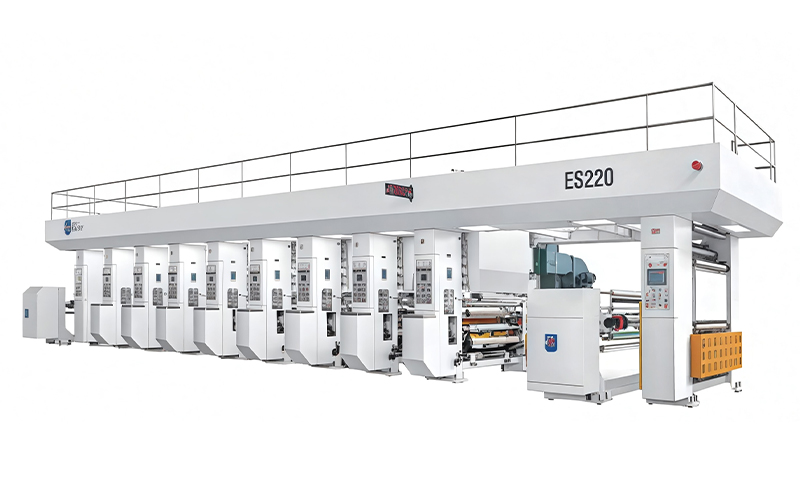

Gravure Printing Machinery
1) Power range: 5.5kW-22kW
2) Rated speed range: 1500rpm-2000rpm
3) Low high speed capability: 0.1Hz

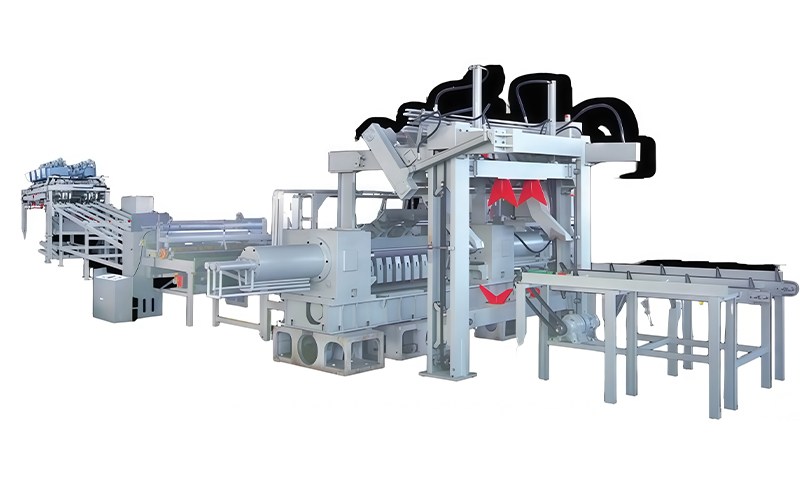

Artificial Panel Machinery
1) Power range: 5.5kW-15kW
2) Rated speed range: 1500rpm-2000rpm
3) Low speed capability: 0.1Hz
